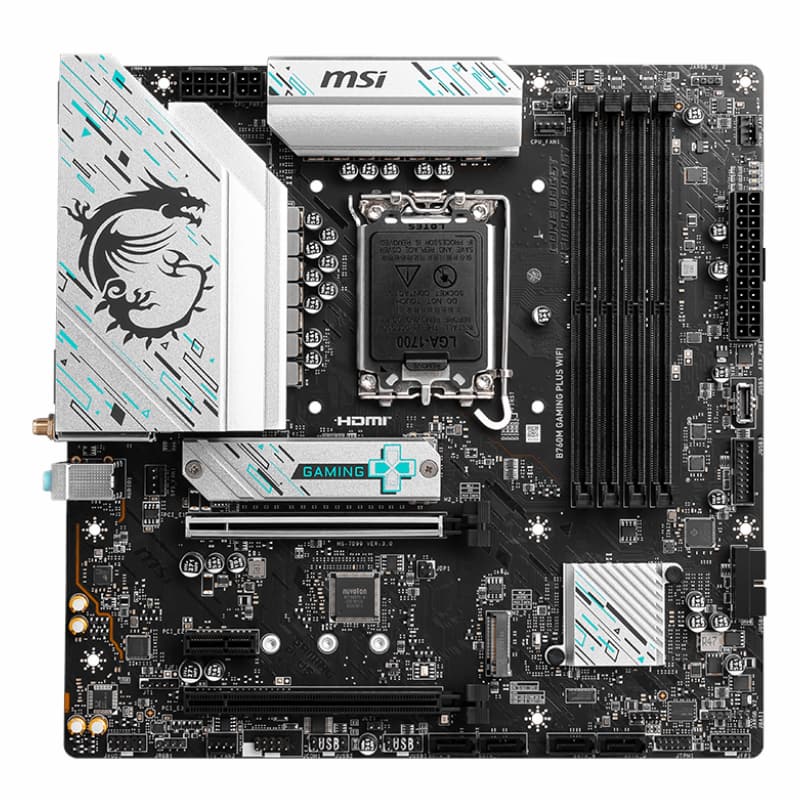

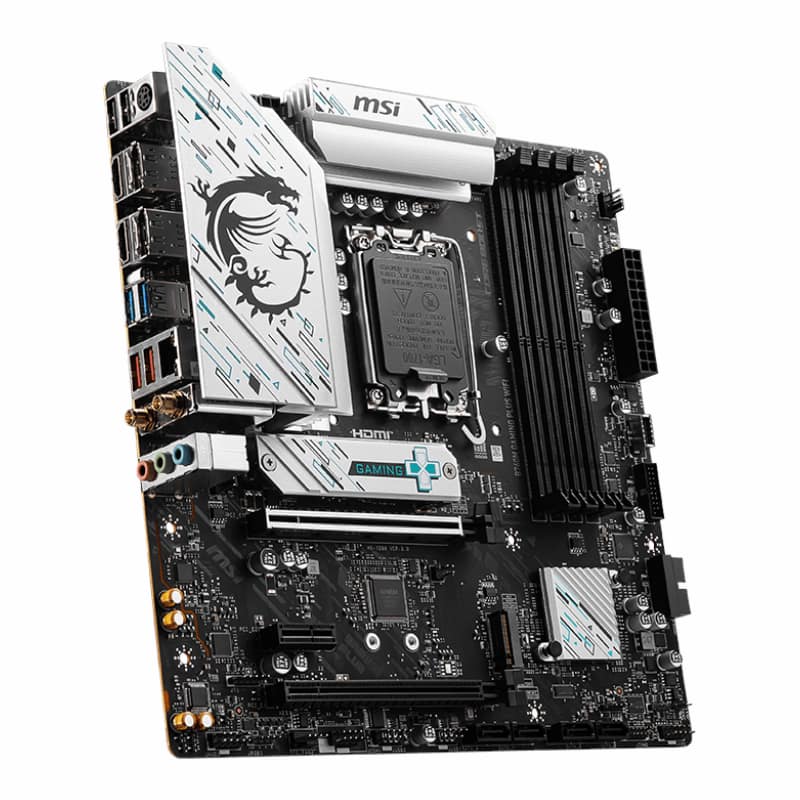

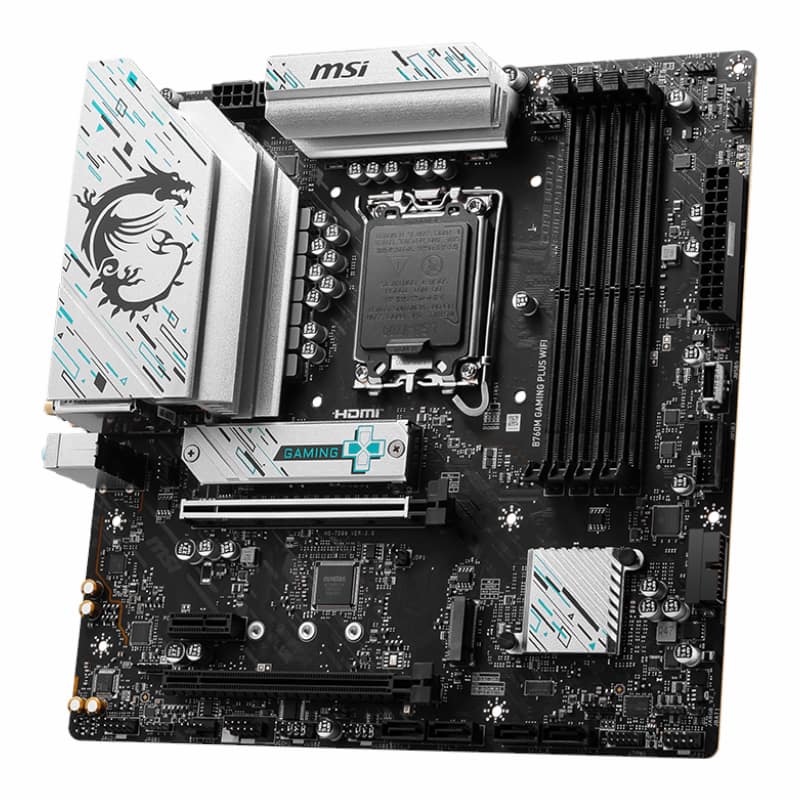

Msi B760M Gaming Plus Wifi DDR5 Intel LGA1700 M-ATX Gaming Motherboard

The B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and a convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all. With our M.2 SSD protection technology, you can say goodbye to sluggish load times since it guarantees top performance without throttling. The extended heatsink design keeps powerful CPUs operating at peak performance by maximising heat dissipation. The VRM heatsink handles upper MOS heat, and excellent thermal pads ensure that all cores operate at their peak efficiency. Thanks to our dedicated water pump PIN header, which provides complete control over pump speed, get ready to easily explore custom water cooling solutions. Installation is simple for a precise fit with a clearly defined “keep-out-zone.”

Not only that, but our improved PCB design boosts bandwidth and transmission speed to guarantee faultless circuit functioning. Experience bandwidth like never before with Lightning Gen 4 PCI-E, doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s. We have used DDR5 memory technology for the highest level of memory performance and combined it with MSI Memory Boost for unmatched high-frequency signal purity.

FEATURES:

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads are built for high-performance system and non-stop gaming experience
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High-Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experiences

SPECIFICATIONS:

• Socket: LGA 1700
• CPU: Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Chipset: INTEL B760
• DDR5 Memory: 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256GB
• PCI-E 4.0 x16: 2
• PCI-E 3.0: 1
• M.2 Slot: 2
• SATA 6G: 4
• RAID: 0/1/5/10
• Wi-Fi and Bluetooth: Intel® Wi-Fi 6E
• USB 3.2 ports (Front): 1(Gen 1, Type C), 4(Gen 1, Type A)

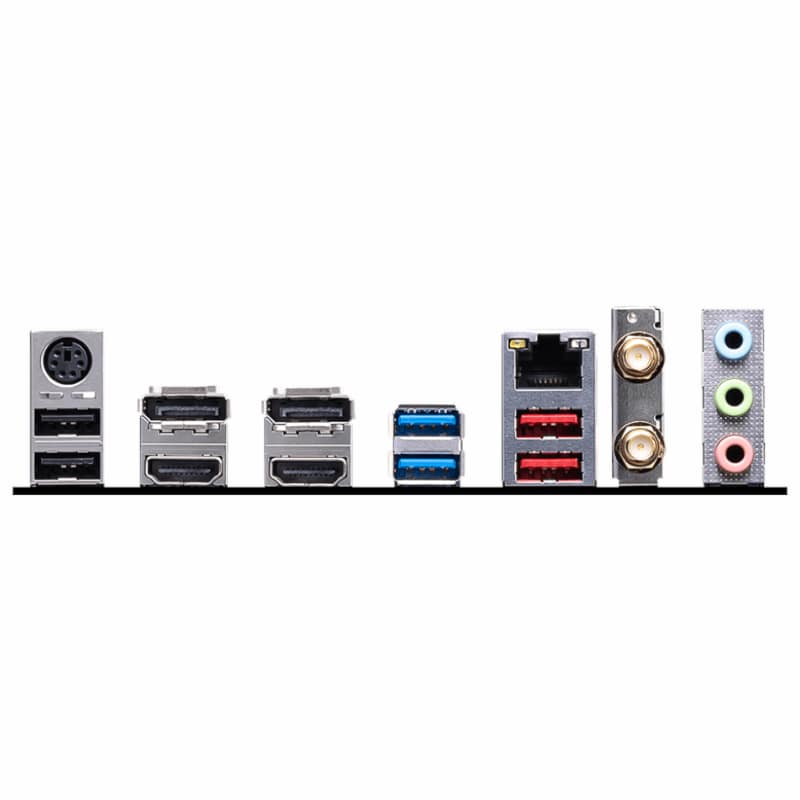

• USB 3.2 ports (Rear): 2(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2 (Type-A)
• Audio ports (Rear): Realtek® ALC897 Codec
• LAN: Realtek® RTL8125BG 2.5G LAN
• HDMI: 2
• DisplayPort: 2
• DirectX: 12
• Form Factor: mATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit
• Product Dimensions: 24.38 x 24.38 cm

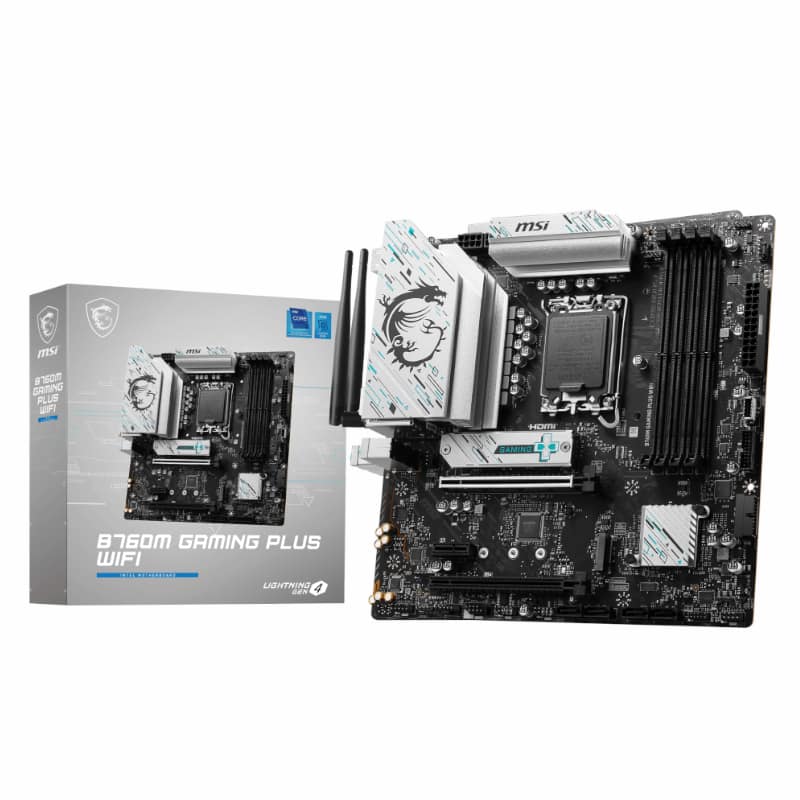

WHAT’S IN THE BOX:

• MSI B760M Gaming Plus WiFi mATX Motherboard – Black x1
• Wi-Fi Antenna x2
• SATA cable x 1
• EZ M.2 Clip x 2
• I/O Shield x 1
• Quick Install Guide x1
• User Manual x1
