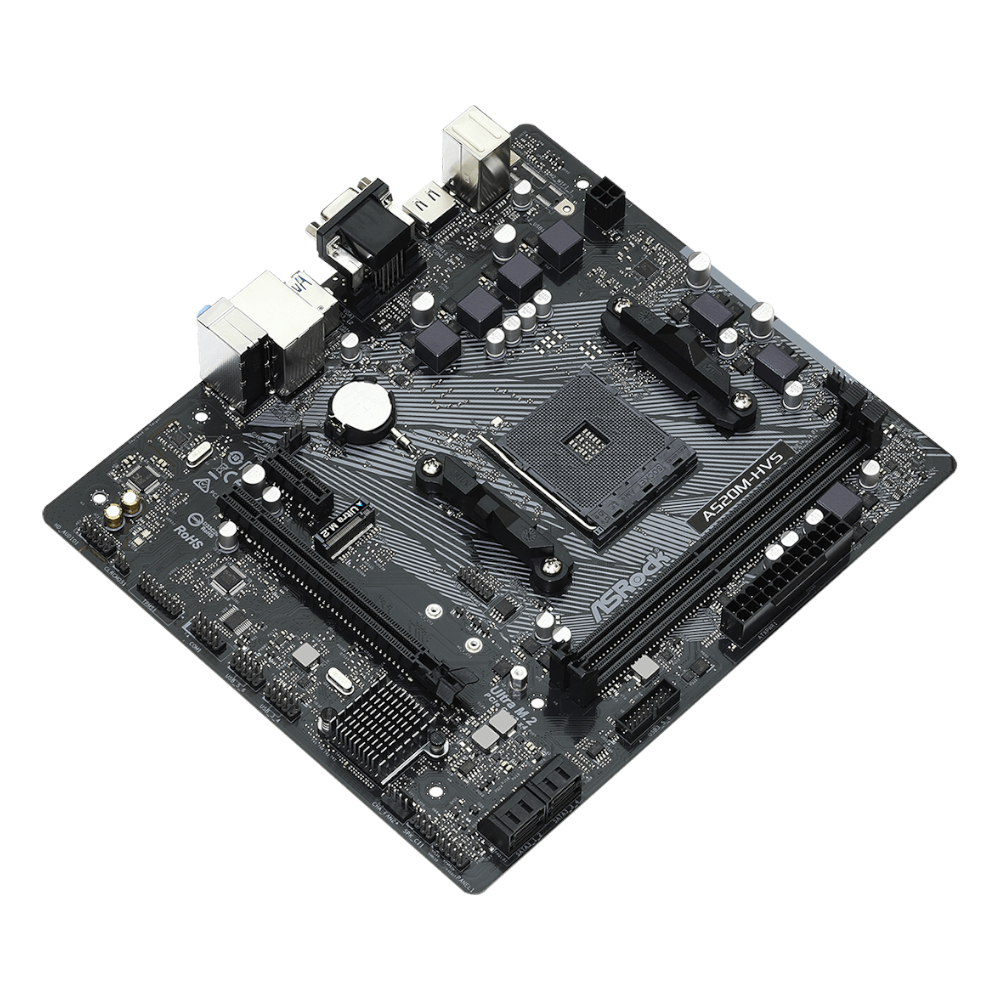

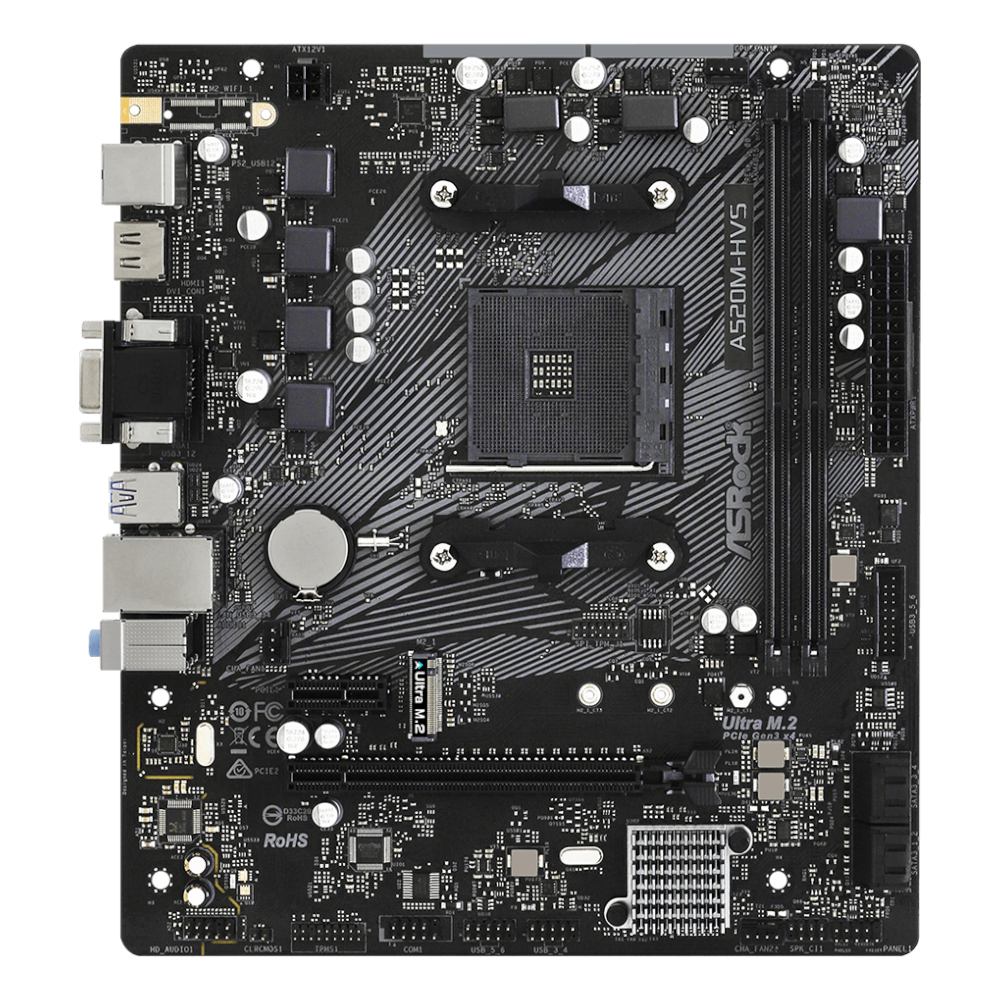

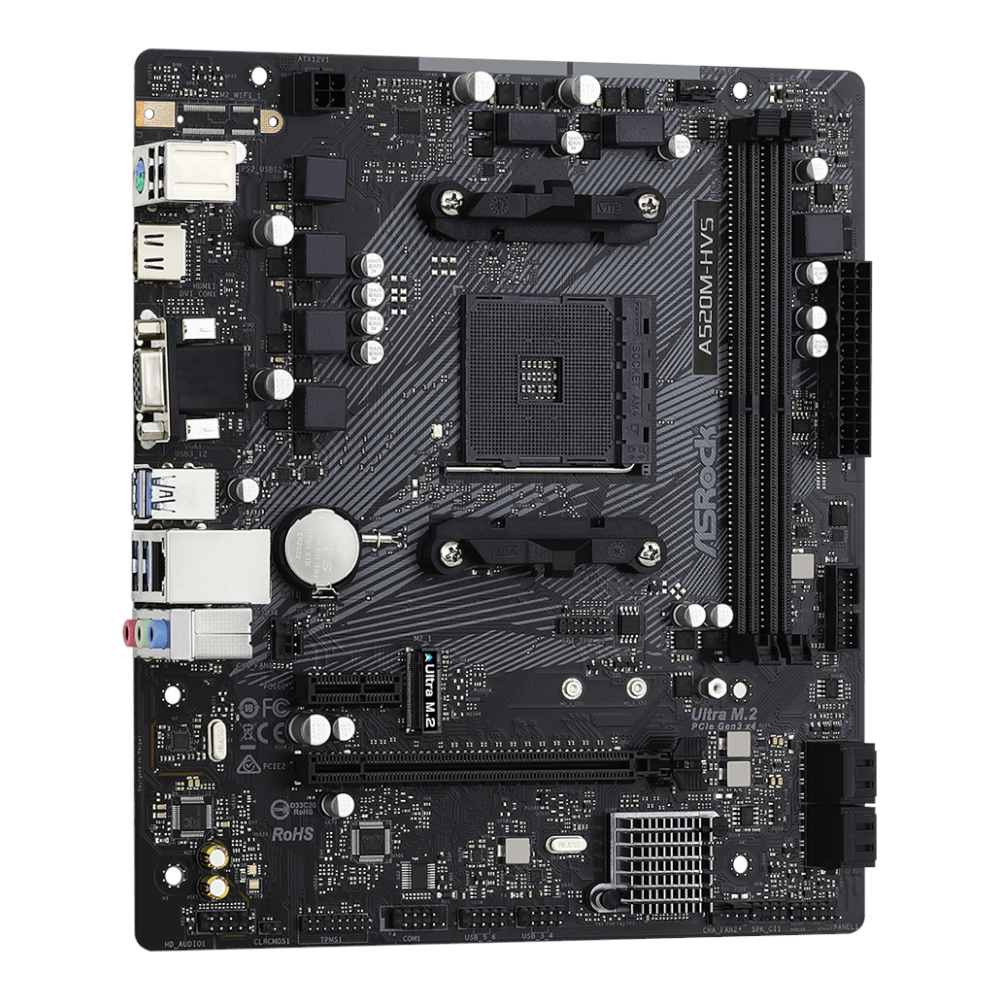

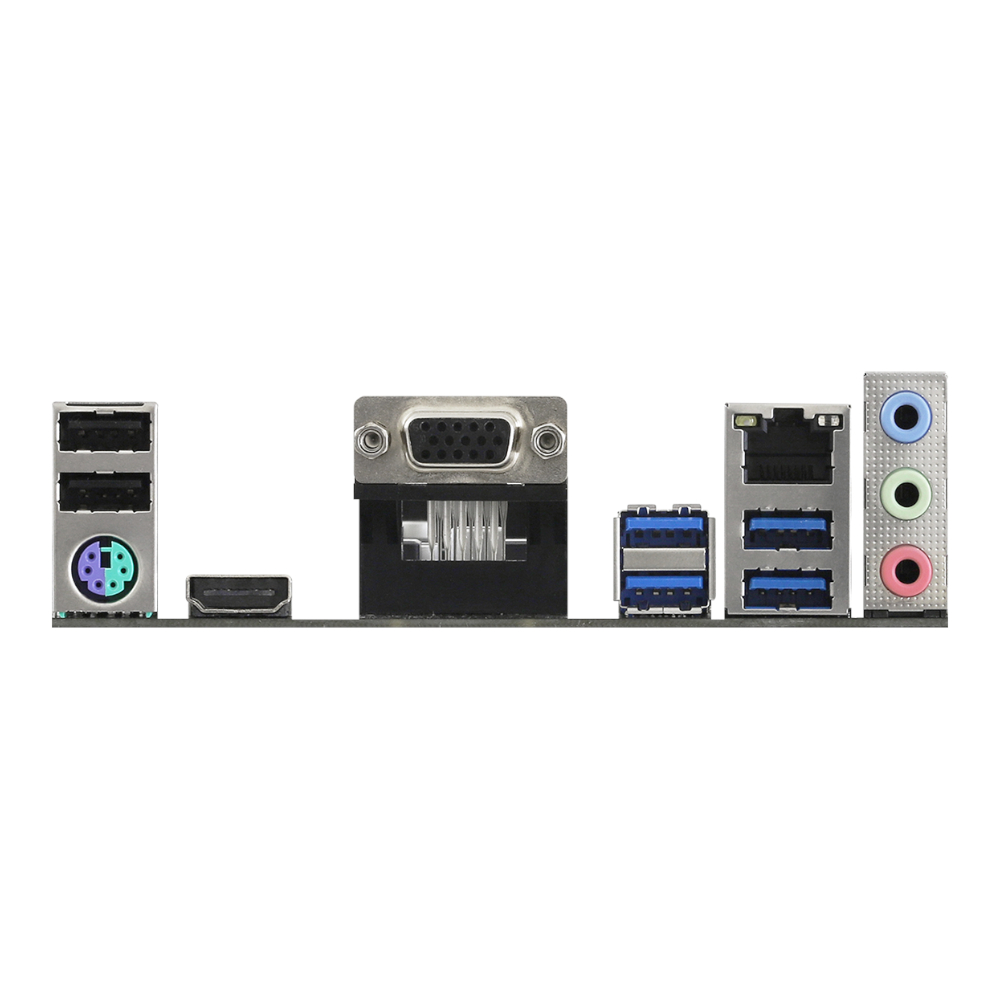

Asrock A520m-hvs AMD Am4 M-ATX Motherboard

The ASRock A520M-HVS AMD AM4 m-ATX Motherboard is a robust and reliable foundation for building your next PC, offering exceptional performance and versatile connectivity. Built to support AMD AM4 Socket Ryzen™ 3000, 4000 G-Series, and 5000 Desktop Processors, it ensures compatibility with a wide range of CPUs, making it ideal for both gaming and productivity-focused builds. With a 6-phase power Design and ASRock’s premium 50A power chokes, this motherboard delivers improved Vcore voltage stability, ensuring optimal performance under demanding workloads.

Designed for high-speed performance, the A520M-HVS features an Ultra M.2 interface with PCIe Gen3 x4 support, enabling data transfer speeds of up to 32Gb/s. It also supports SATA3 6Gb/s M.2 modules, providing flexibility for modern storage solutions. AMD Smart Access Memory unleashes the full potential of GPU memory, removing performance bottlenecks and delivering a smoother, faster experience. Graphics enthusiasts will appreciate the HDMI 4K 60Hz output, which ensures fluid visuals with enhanced frame rates, as well as additional output options with D-Sub and HDMI ports for versatile display setups.

Built for durability, the A520M-HVS features a High-Density Glass Fabric PCB design that protects against electrical shorts caused by humidity. Its Sapphire Black PCB not only enhances its durability but also adds a sleek, modern aesthetic. The board supports DDR4 memory speeds up to 4733+ (OC), ensuring exceptional performance for demanding applications. With support for 7.1-channel HD audio, Gigabit LAN, and a range of USB 3.2 Gen1 and USB 2.0 ports, this motherboard offers a comprehensive suite of features for creating a reliable and high-performing system. Whether you’re gaming, streaming, or multitasking, the ASRock A520M-HVS delivers exceptional value and performance in a compact m-ATX form factor.

FEATURES:

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• 6 Phase Power Design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: D-Sub, HDMI
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
• 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
• 6 x USB 2.0(2 x Rear, 4 x Front)
• Realtek Gigabit LAN

SPECIFICATIONS:

• Socket: AMD Socket AM4
• CPU (Max Support): Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | 6 Power Phase design
• Chipset: AMD® A520 Chipset
• DDR4 Memory: DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E GEN: Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM (Header): 1
• RAID: 0/1/10
• LAN: Realtek RTL8111H Gigabit LAN
• USB 3.2 ports (Front): 1(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 2
• USB 2.0 ports (Rear): 2(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek® ALC892/ALC897 Codec
• D-Sub Port: 1
• HDMI: 1
• DirectX: 12
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

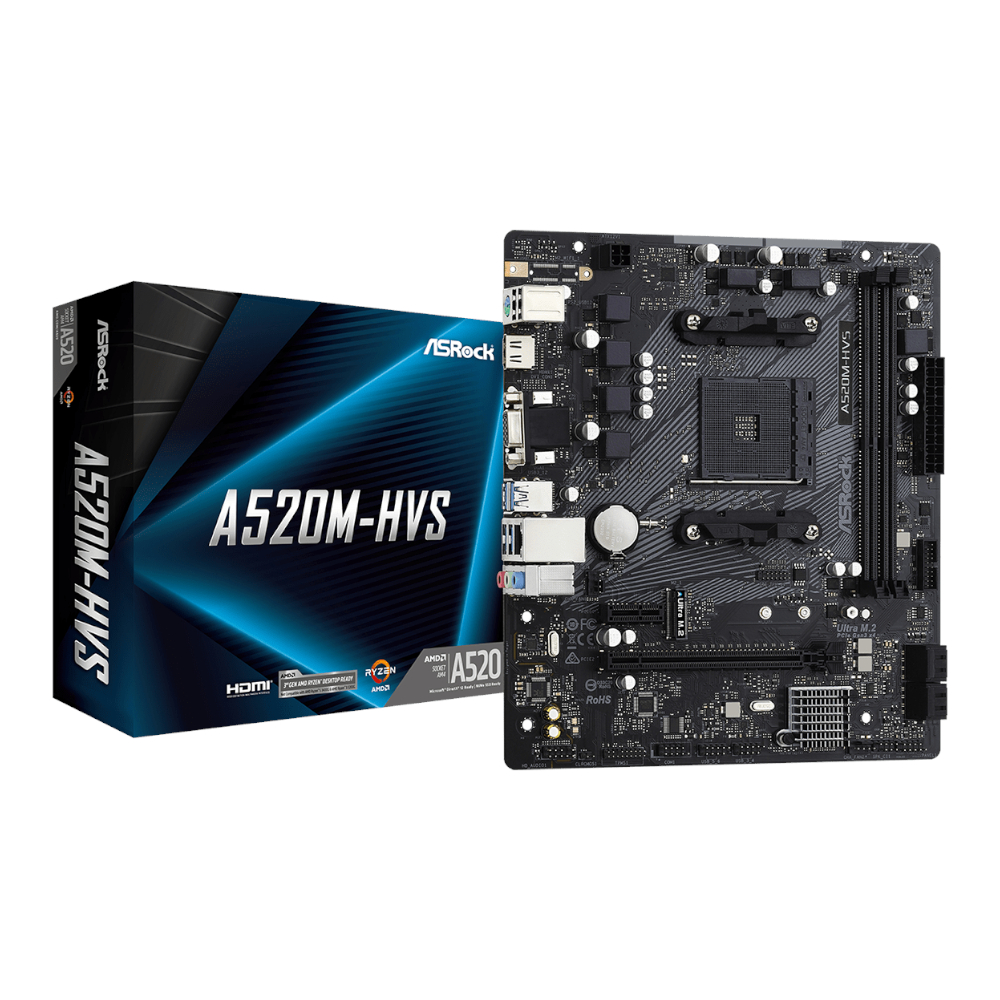

• ASRock A520M-HVS AMD AM4 m-ATX Motherboard – Black x1
