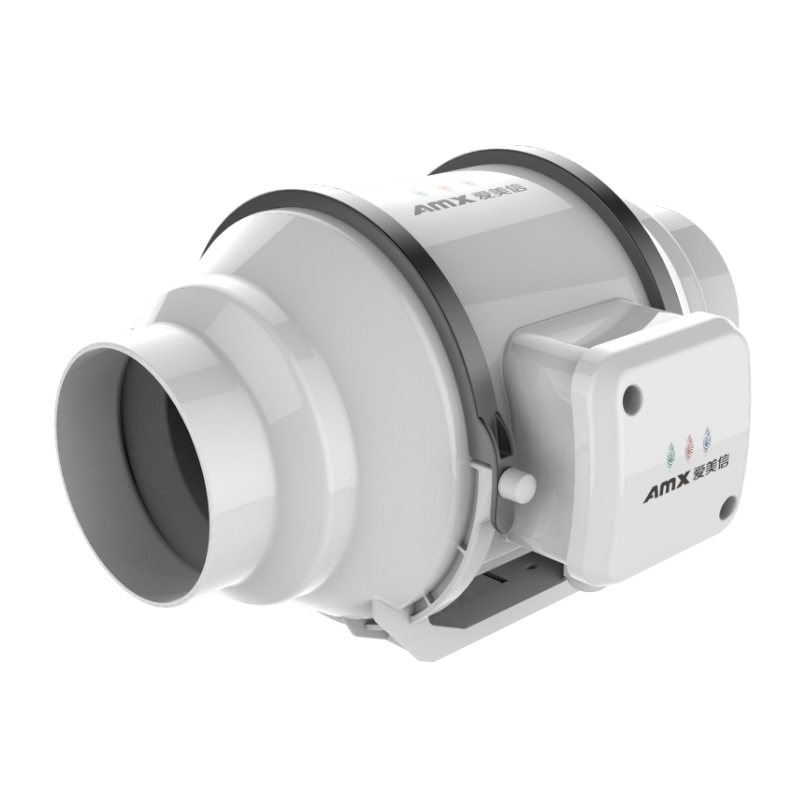

Amx 250mm Mixed Flow Industrial Inline Duct Fan

The AMX D250 Mixed Flow Duct Ventilator Fan is equipped with a number of features, including low noise, high ventilation, and high static pressure. These ventilation duct fans are designed for blast, exhaust, circular, and renew air ventilation and filtration systems. They are very versatile and can be utilised in hotels, markets, gyms, grocery stores, warehouses, and the majority of public spaces. It is constructed with a housing, impeller, motor, base, and connection box.

The motor and impeller are located in the middle of the structure, making it optimal for most ventilation applications. This makes it simple to install, remove, or maintain the fans, even in a sealed space, without having to modify the pipeline. Additionally, they can be arbitrarily installed on any side of the pipeline, regardless of the angle. In addition, they can be installed in series if additional air pressure is required.

FEATURES:

• Full ABS plastic body, lightweight but with enough strength.
• Double insulation for extra protection.
• Mixed-flow impeller design with high pressure and a large airflow, high efficiency, and low noise.
• Special snap joint design, easy installation, perfect seal conditions, and easy maintenance.
• Can be widely used in ventilation, meeting rooms, office, public space, hotels and residences.

SPECIFICATIONS:

• Voltage: 220~240V
• Frequency: 50~60Hz
• Power: 200/130W
• Volume: 1500/1100 m3/h
• Static Pressure: 550/400 Pa
• Noise: 60/54 dB
• Duct Size: 250 mm
• Product Dimensions: 38.3 x 29.8 x 29.1 cm
• Product Weight: 7000g

WHAT’S IN THE BOX:

• AMX D250 250mm Mixed Flow Duct Ventilation Fan – White x1
